1.2-1.6t

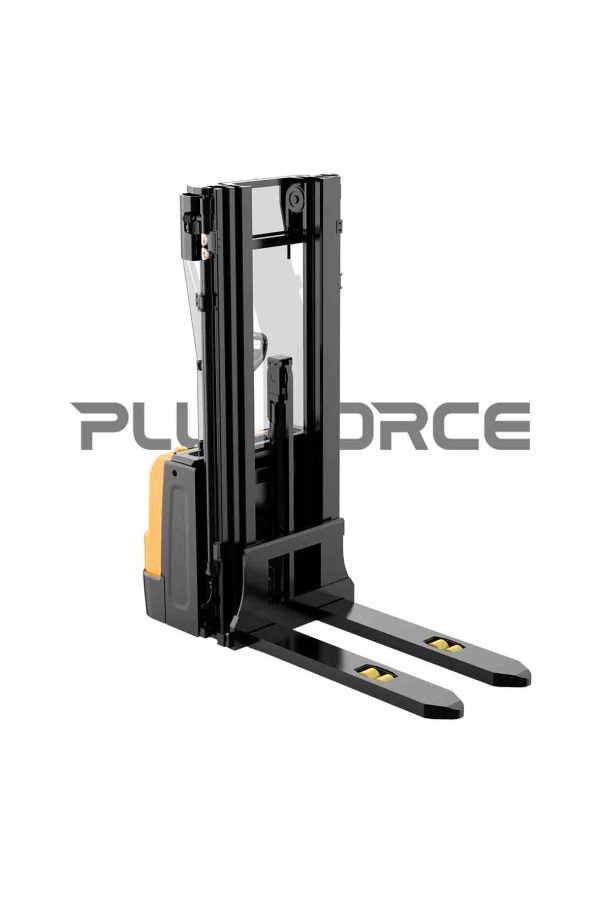

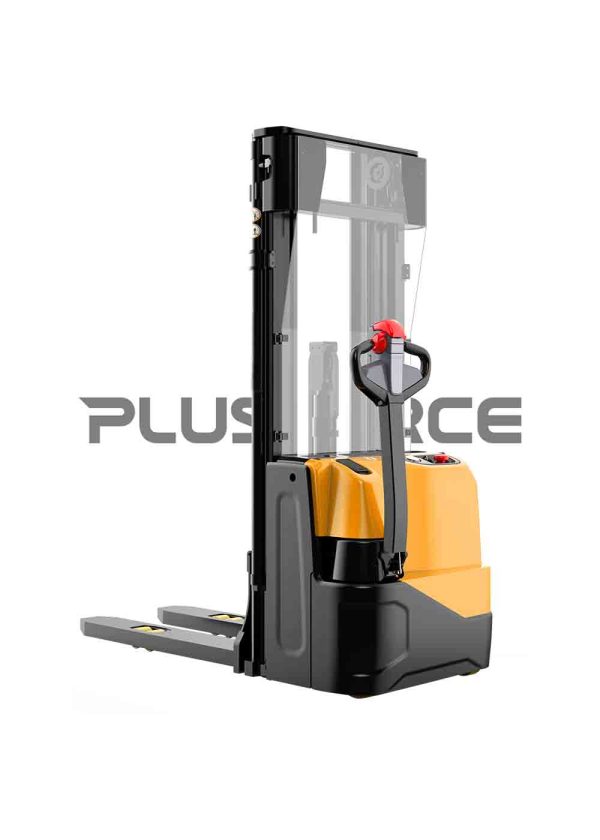

Heavy-duty Stacker

Performance

●Equip with reliable controller to ensure the operation stability;

●The battery cover is equipped with storage box for placing cup and files;

●High-power pump motor with a new optimized hydraulic system, lifting and lowering speed increased;

●The new proportional handle and dual proportional switches enable both left and right lifting and lowering

operations, and accurately perform micro-positioning.

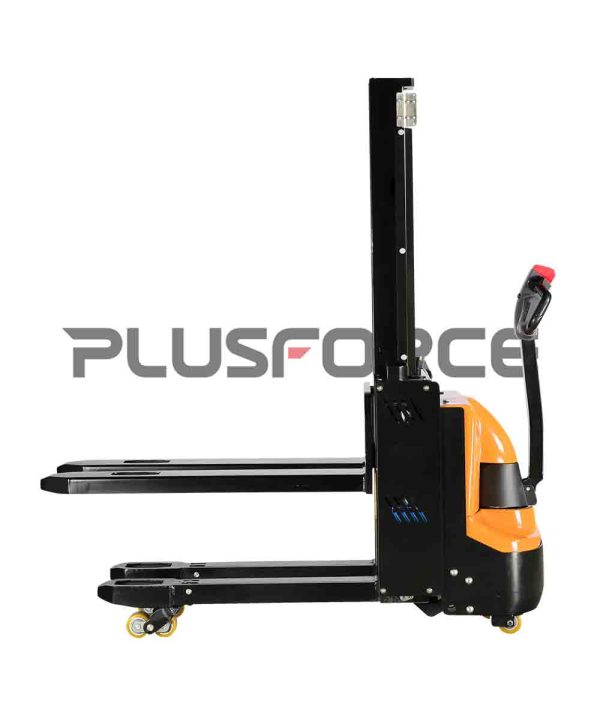

●Optional initial lifting

Safety

●Equip with a three-phase AC motor, it is more efficient and energy-saving, safer and

more reliable while providing powerful energy;

●Automatically decelerates and moves after lifting, and the electronic top limit switch

improves the safety of vehicle operation;

●H-shaped standard channel steel improves the overall strength.

Maintenance

●Lithium battery and an integrated charger to charge flexible and rapid and zero maintenance;

●Only two screws are needed to open the cover easily for maintenance and inspection.

Specifications

Power type

full electric

full electric

Operation

Pedestrian

Pedestrian

Capacity

Q(kg)

1200

1600

Loading center

C(mm)

600

600

Lift height

h3 (mm)

2915

2915

Overall length

l1 (mm)

1864

1924

length to face of fork

l2 (mm)

714

774

Overall width

b1/b2(mm)

810

810

Travel speed, laden/unladen

km/h

5/5.5

5/5.5

Lifting speed, laden/unladen

m/s

0.23/0.3

0.23/0.3

Lowering speed, laden/ unladen

m/s

0.4/0.36

0.4/0.36

Gradeability, laden/unladen

%

8/16

8/16
