1.5t

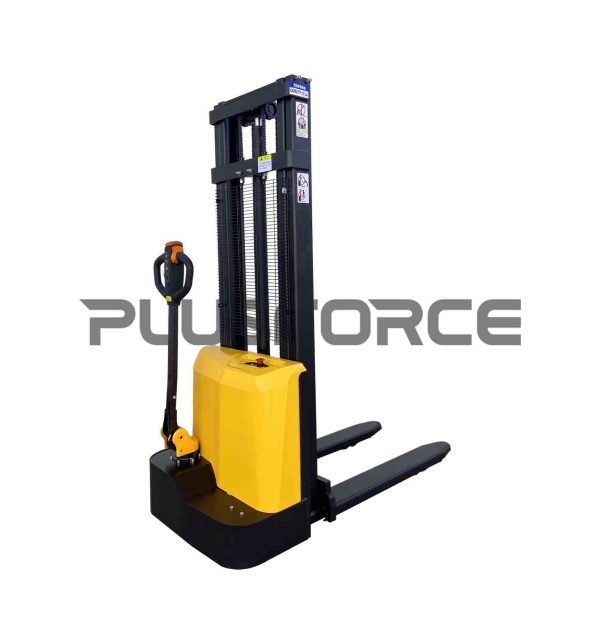

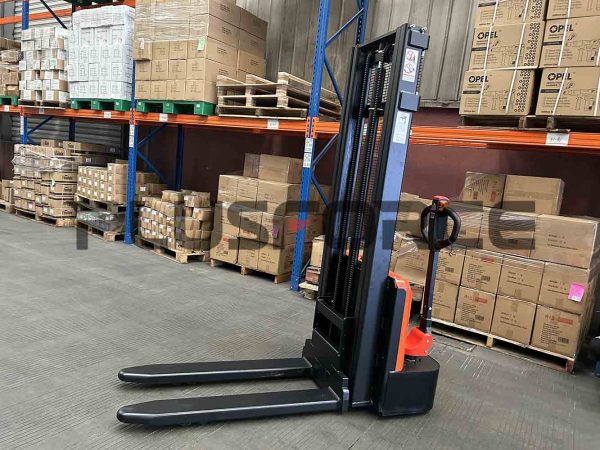

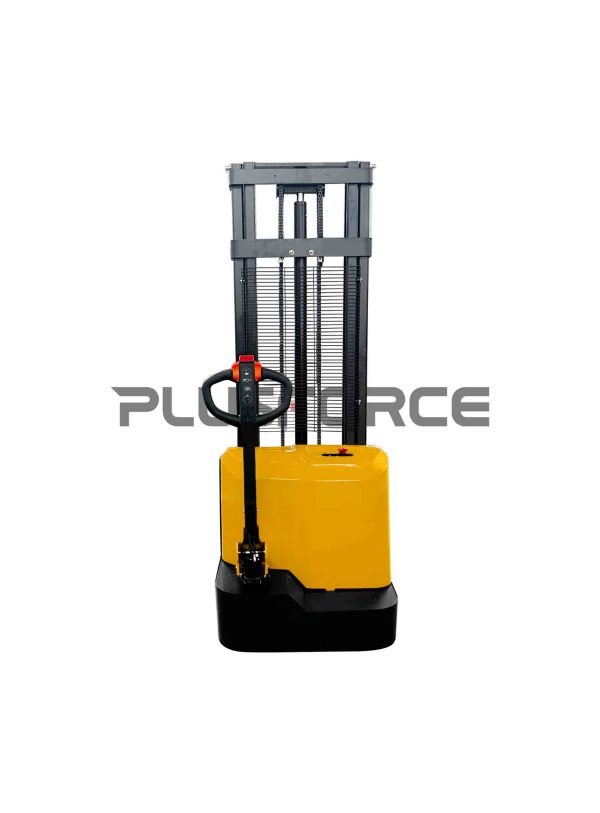

Electric Stacker

Performance

●Powerful drive motor and lifting motor provide the machine with endless power, adapting to

more working conditions；

●Equipped with a big brand controller, stable performance, reliable quality, low failure rate,

and increased overall life；

●Hydraulic system explosion-proof design, even if the oil pipe bursts, it will not fall quickly；

●Power display：remind to charge in time, protect the battery and improve work efficiency；

●Low voltage protection, safeguards the electrical system and battery from damage due to critically

low voltage levels, enhancing component longevity.

Operation

●Turtle button easily engage slow-speed precision control for delicate maneuvers or confined spaces；

●Humanized design, integrated function handle and magnetic key, easy to operate；

●The lifting system adopts a double chain structure, which makes the lifting more stable and reliable；

●Front double wheels offers increased stability, improved weight distribution, and better traction,

particularly on uneven surfaces.

Safety

●Emergency power off switch can easily cut off all power supply to avoid emergency accidents；

●The handle is equipped with an emergency reverse switch to prevent the machine from hitting the

operator. Once it is slightly touched, it will reverse and greatly improve the safety of the operation；

●The mast is equipped with a metal protective mesh to improve operator safety；

●Optional height switch, the travel speed is halved after the fork is raised.Enhancing the safety in significant.

Maintenance

●Adopt mature components, extremely low failure rate, greatly reducing maintenance costs；

●The main components can be inspected and repaired easily；

●Optional maintenance-free lithium battery to meet different needs, fast charging and more

environmentally friendly.

Specifications

Power type

full electric

Operation

Pedestrian

Capacity

Q(kg)

1500

Loading center

C(mm)

500

Max. Lift Height

h3 (mm)

3000

Overall length

l1 (mm)

1691

Length to face of fork

mm

541

Overall width

b1 (mm)

786

Travel speed, laden/unladen

km/h

3.5/4

Lifting speed, laden/unladen

m/s

0.085/0.11

Lowering speed, laden/ unladen

m/s

0.095/0.084

Gradeability, laden/unladen

%

3/10
