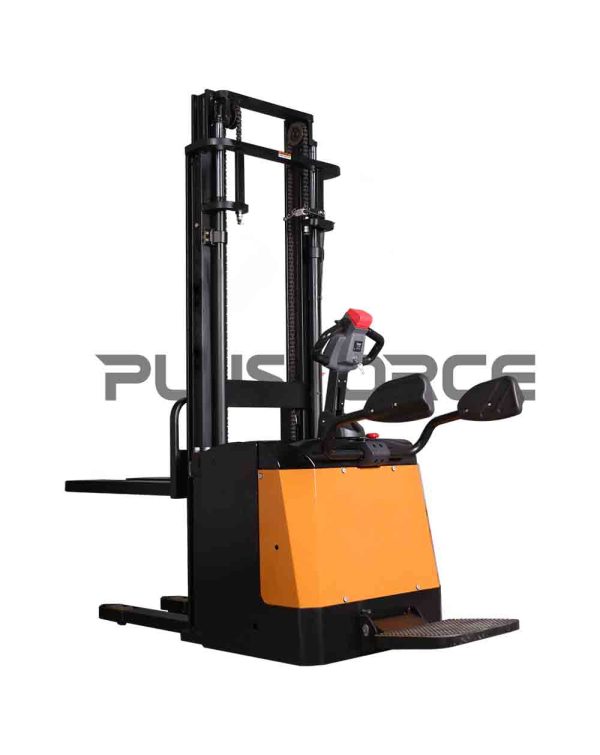

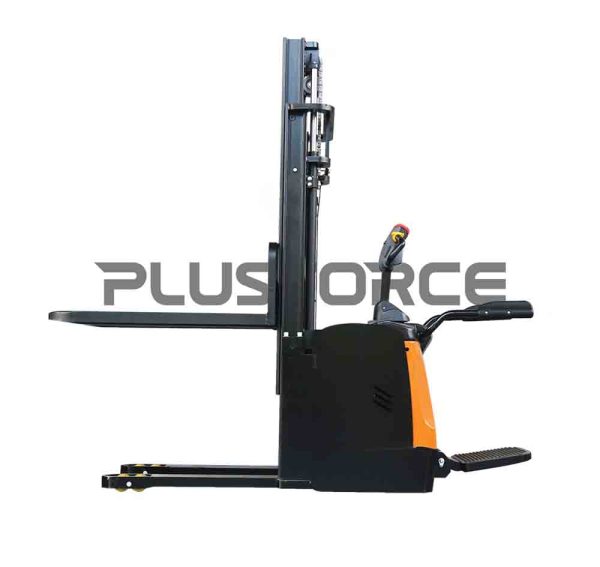

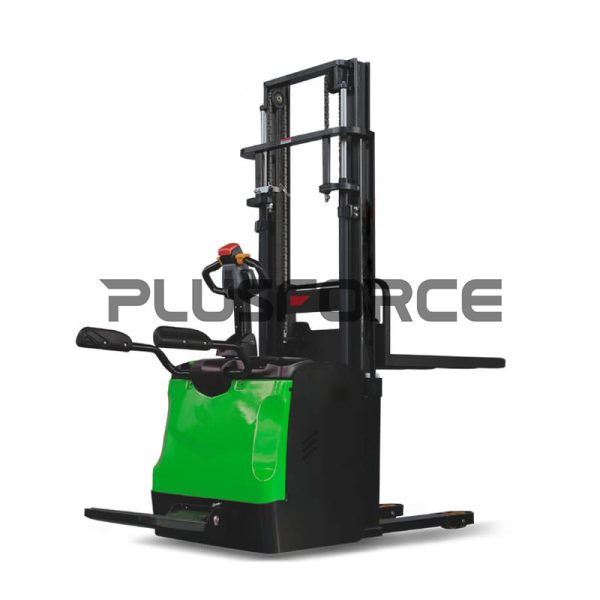

1.6-2.0t
Electric Standing Stacker

Performance

●Low-noise and durable hydraulic devices,good cylinders and hoses ensure high reliability of the

hydraulic system;

●H shape channel mast improves the strength of the whole stacker;

●High-strength vertical gearbox has a longer service life;

●AC system provides strong power, precise control and excellent performance.

Operation

●With the new design of ergonomical handle, all buttons can be reached comfortably& conveniently;

●Foldable platform reduces vibrations and makes the operator feel more comfortable when driving.

When platform is folded, the truck can work in smaller spaces at low speed;

●Ergonomic and durable protection arms ensure easy operation. Electric power steering, smooth

and comfortable (EPS).

Safety

●Multiple lifting limit protections ensure safety, automatically switch to low speed when the fork

reaches its set height;

●Emergency reverse button protects the operator from injury;

●When the truck is out of control, the emergency disconnector will cut off the power to avoid accidents;

●Automatic deceleration function when turning;

●The anti-roll rear brake prevents the truck from slipping when it is out of control or

driving on a slope;

●Full speed is only available when the protection arm is open.Otherwise,the low-speed mode will be

automatically turned on.

Maintenance

●AMP connectors and durable wires greatly reduce component failures;

●Low voltage cut-off setting protects the battery;

●Hour meter and battery indicator remind the operator of battery charge;

●Mast and chassis are assembled together for easy  maintenance.

Specifications

Power type

full electric

Operation

Standing

Capacity

Q(kg)

1600

Loading center

C(mm)

600

Lifting height

h3 (mm)

2907

Height handle in driving position min./max.

h14 (mm)

1150 / 1480

Overall length

l1 (mm)

2032

Length to face of fork

l2 (mm)

883

Overall width

b1/b2 (mm)

850

Travel speed, laden/unladen

km/h

5.5/6

Lifting speed, laden/unladen

m/s

0.13/0.16

Lowering speed, laden/ unladen

m/s

0.30/0.22

Gradeability, laden/unladen

%

8/16
