1.8t

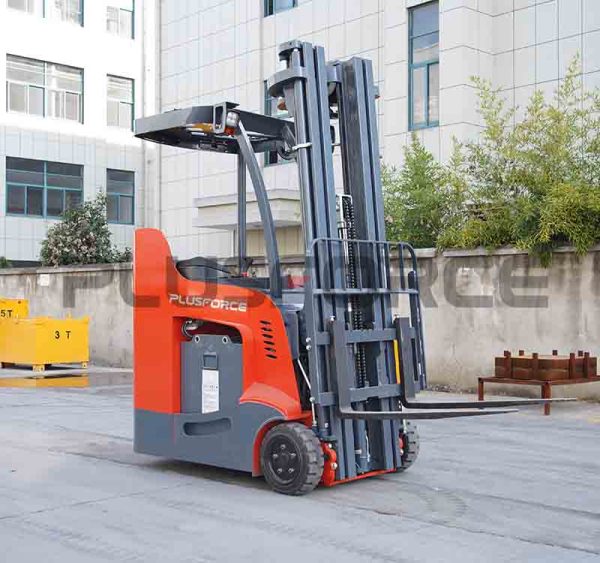

Electric Standing Counterbalance Forklift

WARRANTY

SERVICE

DELIVERY

TERMS

SOLUTION
●Capacity:1.8t
●Compact and simple appearance
●Smooth streamlined design
●AC motor with front dual drive
●Faster speed and better climbing performance
Performance
●AC motor combined with dual-drive technology delivers stronger and more consistent power;
●Advanced control system guarantees precise and smooth control over driving, lifting, and steering functions;
●Equipped with solid tires, it offers greaterdurability and wear resistance,it also greatly improves grip;
●Comfortable backrest is included to minimize fatigue during extended use;
Operation
●Compact design results in a remarkably small turning radius,excellent maneuverability in narrow spaces,
enhancing operational efficiency;
●The integrated control handle offers intuitive and simplified operation;
●Electronic power steering system ensures effortless and smooth operation, significantly reducing
operator fatigue;
●Optional high mast to meet high-level operation requirements.
Safety
●Electromagnetic braking ensures quicker response times and improved safety during operation;
●Bright LED lights and warning lights enable safe operate even in low-light environments;
●Reinforced the mast and overhead guard structure, which is durable, safe and reliable;
●Equipped with rearview mirror for easy observation of the rear situation;
Maintenance
●Adopt mature components, tested in the market, less maintenance;
●For easy maintenance, the battery is designed with a convenient bilateral slide-out system;
●Optional maintenance-free lithium battery, fast charging, energy saving and environmental protection.
Specifications
| Power type | full electric | |
| Operation | Standing | |
| Capacity | Q(kg) | 1800 |
| Loading center | C(mm) | 500 |
| Lifting height | h3(mm) | 3300 |
| Overall length | l1(mm) | 2695 |
| Length to face of fork | l2(mm) | 1775 |
| Overall width | b1/b2(mm) | 1067/1065 |
| Travel speed, laden/unladen | km/h | 12/12 |
| Lifting speed, laden/unladen | m/s | 0.35/0.7 |
| Lowering speed, laden/ unladen | m/s | 0.55/0.55 |
| Gradeability, laden/unladen | % | 15/15 |
