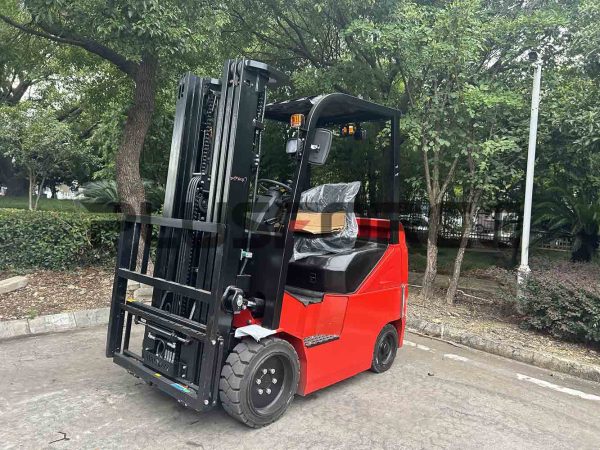

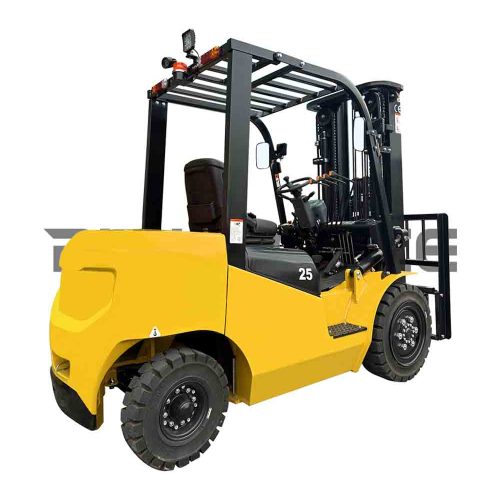

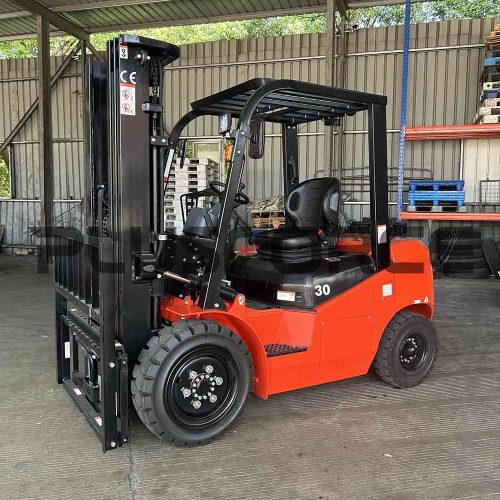

2.0-3.2t
Electric Cushion Forklift

Performance

●Temperature management system, liquid cooling, extended service life;

●Equipped with 1C super charger, it can be charged to 80% in 30minutes and fully charged within one

hour, with high efficiency;

●AC driving motor, provide a continuous and strong power to machine for long time working;

●CATL 173V high voltage lithium battery enable the forklift with fast lifting speed, fast driving speed

and great gradeability.

Operation

●The wide-view mast design provides the drivers with an excellent field of vision, making loading

and unloading operations safer and more efficient;

●Adjustable steering wheel and gentle feel, easy and comfortable to operate;

●Cushion tires are more suitable for indoor, have better maneuverability in narrow spaces, and

lower maintenance and replacement costs;

●Each function button is integrated distribute, simple and convenient

Safety

●Integrated distribution of electrical components, IP67 waterproof, more durable;

●Strengthened structure,solid overhead guard to ensure the safety of operators and goods;

●LED lights, flashing light are better and safer vision for night operation;

●Option OPS, the driver leaves the seat and the vehicle cannot be operated, avoiding accidents.

Maintenance

●Maintenance-free AC driving motor, extended service life and less maintenance cost;

●Lithium battery, fast charging, no pollution and long lifespan, it is also maintenance-free;

●Reliable components,and simple layout for easy access to the main components for maintenance;

●Optional mast,side shift, fork positioner and multiple attachments are available.

Specifications

Power type

full electric

full electric

full electric

full electric

Operation

Seated

Seated

Seated

Seated

Capacity

Kg

2000

2500

3000

3200

Load center

mm

500

500

500

500

Overall length

 mm

3240

3240

3410

3410

Length to face of fork

mm

2170

2170

2340

2340

Overall width

mm

1120

1120

1160

1160

Travel speed  (laden/unladen)

Km/h

16/18

16/18

17/18

17/18

Lifing speed  (laden/unladen)

mm/s

480/500

480/500

440/460

420/440

Lowering speed  (laden/unladen)

mm/s

≤600/≥300

≤600/≥300

≤600/≥300

≤600/≥300

Max.Gradeability  (laden)

%

18

18

20

20
