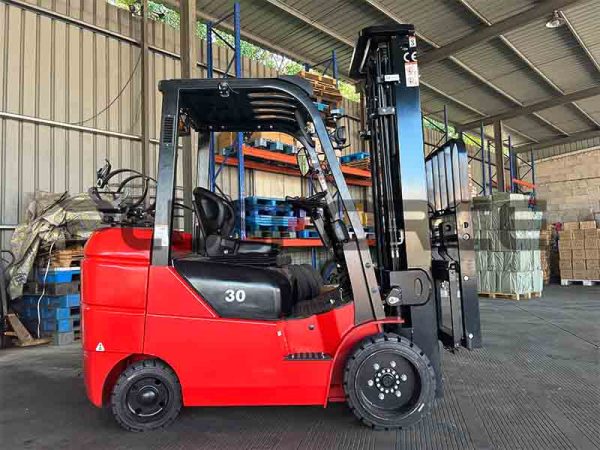

2.0-3.2tLPG & Gasoline Cushion Forklift

Performance

●High-position air intake, scientific design, helps fuel burn fully,save energy and save cost;

●Special design with a big counterbalance weight at rear side;

●Fast driving and lifting speed increase the working efficiency;

●LPG fuel and gasoline fuel are available.

Operation

●Cushion tires are more suitable for indoor, have better maneuverability in narrow spaces, and

lower maintenance and replacement costs;

●Ergonomic design, wide field of view, adjustable steering wheel and seat, heightening of

overhead guard, reducing driving fatigue and make operator comfortable;

●Equipped with a storage space, convenient for carrying documents and cups, efficient working;

●Optional cabin to meet outdoor various needs.

Safety

●Rearview mirror to prevent blind spots caused by increased counterweight and improve driving safety;

●Equipped with LED lights,providing a better and safer vision for night operation;

●Emergency stop switch can immediately cut off power to avoid accidents;

●Reinforced mast and headguard keep the operator in safe.

Maintenance

●LCD display,hour meter,engine oil pressure alarm and fault prompt for easy maintenance;

●Reliable components,and simple layout for easy access to the main components for maintenance;

●Optional different mast height,side shift, fork positioner and multiple attachments are available.

Specifications

Power type		LPG/Gasoline	LPG/Gasoline	LPG/Gasoline	LPG/Gasoline
Operation		Seated	Seated	Seated	Seated
Capacity	Kg	2000	2500	3000	3200
Load center	mm	500	500	500	500
Lifting height	mm	3000	3000	3000	3000
Overall length	mm	3425	3425	3510	3535
Length to face of fork	mm	2355	2355	2440	2465
Overall width	mm	1090	1090	1120	1120
Travel speed (laden/unladen)	Km/h	15/17	15/17	15/17	15/17
Lifing speed (laden/unladen)	mm/s	530/600	530/600	500/570	500/570
Lowering speed (laden/unladen)	mm/s	≤600/≥300	≤600/≥300	≤600/≥300	≤600/≥300
Max.Gradeability (laden)	%	20	20	20	20
