2.0-3.5t

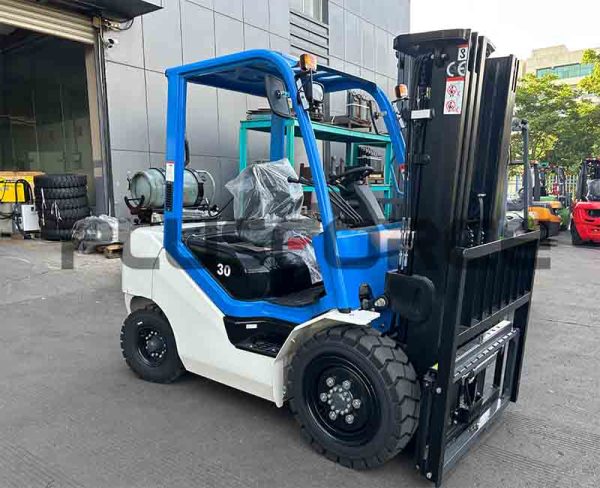

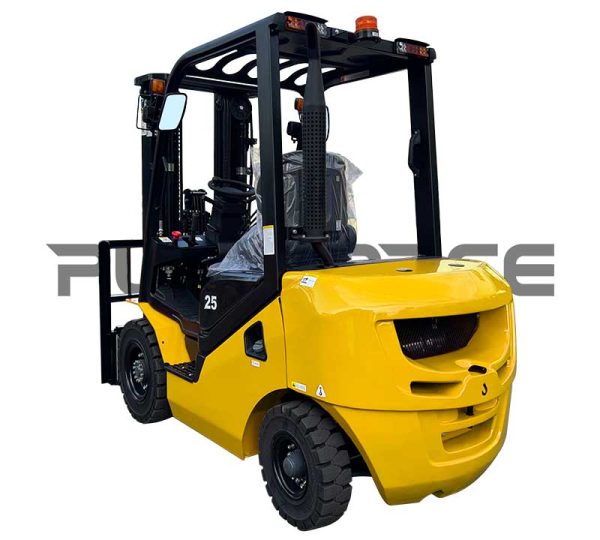

Diesel Counterbalance Forklift
WARRANTY
SERVICE
DELIVERY
TERMS
SOLUTION
●Capacity：2.0-3.5t
●Fashionable appearance
●Extended wheelbase
●High passability
●Mast, side shift,cab and engine options available
Performance
●One-piece non-slip pedal, easy to get on and durable;
●The optimized intake and exhaust system, low-position air intake system and closed footboard reduce the noise
level;
●The suspended cabin is suspended on the vehicle body through 4 integrated hydraulic shock-absorbing pads,
which greatly reduces the vibration of the cabin;
●Diesel engine, gasoline engine, LPG engine are available.
Operation
●Larger operating space,cab heightening, sinking tilt cylinder, foot brake suspension structure
layout, comfortable operation;
●Small-diameter steering wheel, multi-point horn button design. New steering wheel adjustment
system, labor-saving operation.
Safety
●The wide-view mast design ensures that the operator has an excellent field of vision during
operation, safer and faster;
●High-strength steel, 20% higher performance than ordinary mast,also with experienced
component, ensure the long liftspan of machine;
●Equipped with exhaust flame arrestor and mars eliminator system, which ensures the safety
operation in dangerous environment.
Maintenance
●Intelligent LCD instrument, including hour meter, fuel level display and various indicator lights, convenient
for work and maintenance;
●Reliable accessories, longer service life and less maintenance;
●Optional side shift, fork positioner and multiple attachments are available.
Specifications
Power type |
Diesel/Gasoline/LPG |
Diesel/Gasoline/LPG |
Diesel/Gasoline/LPG |
Diesel/Gasoline/LPG |
|
Operation |
Seated |
Seated |
Seated |
Seated |
|
Capacity |
Kg |
2000 |
2500 |
3000 |
3500 |
Load center |
mm |
500 |
500 |
500 |
500 |
Lifting height |
H (mm) |
3000 |
3000 |
3000 |
3000 |
Overall length |
mm |
3665 |
3665 |
3800 |
3845 |
Length to face of fork |
L (mm) |
2595 |
2595 |
2730 |
2775 |
Overall width |
W (mm) |
1150 |
1150 |
1225 |
1225 |
Travel speed (laden/unladen) |
Km/h |
18/19 |
18/19 |
19/20 |
19/20 |
Lifing speed (laden/unladen) |
mm/s |
530/570 |
530/570 |
510/550 |
440/480 |
Lowering speed (laden/unladen) |
mm/s |
≤600/≥300 |
≤600/≥300 |
≤600/≥300 |
≤600/≥300 |
Max.Drawbar pull (laden) |
N |
14300 |
14300 |
21000 |
21000 |
Max.Gradeability (laden) |
% |
20 |
20 |
20 |
20 |
