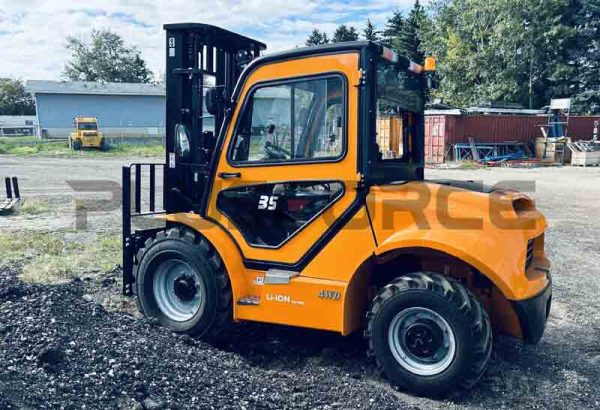

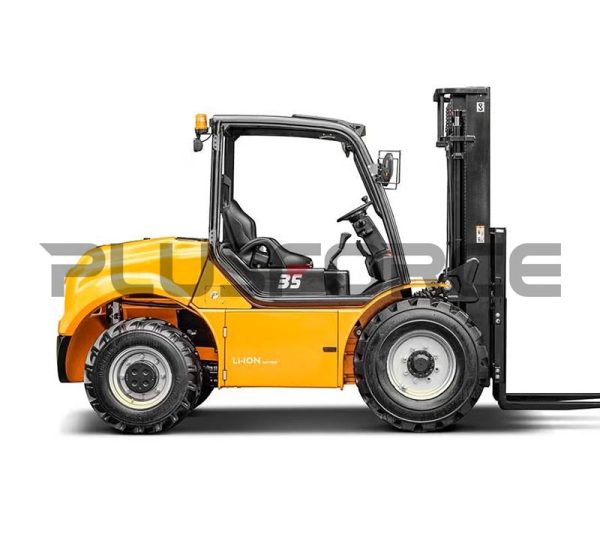

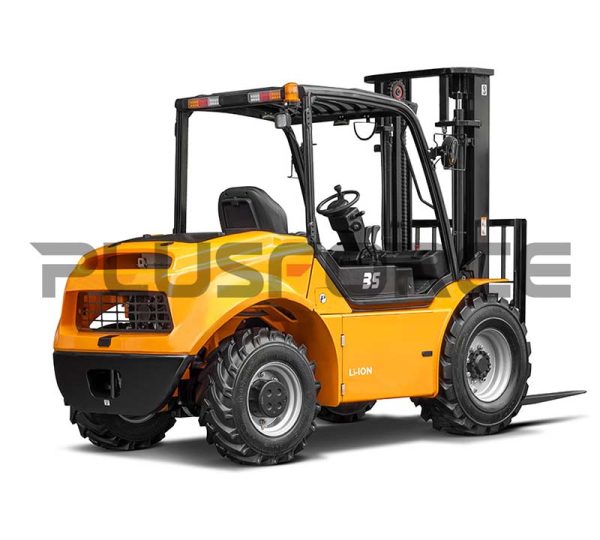

2.5-3.5tHigh-voltage Lithium Battery Rough Terrain Forklift

●Representing a breakthrough over the traditional design and a new generation of rough terrain forklifts,

the forklift is equipped with pioneered front and rear dual-motor forklift high-voltage drive systems and

a new energy vehicle high-voltage platform to offer both performance of rough terrain forklift and comfort of electric forklift;

●Compared with low-voltage lithium battery forklifts, high-voltage lithium battery technology can save

about 40% of the overall cost during the service cycle.Compared with fuel forkdifts, high-voltage lithium battery

technology can save about 9o% of the overall cost during the service cycle;

●Through disruptive battery and fast charging technology, the charging time is greatly shortened.

Fast charging makes it possible for the whole vehicle to work continuously, shortening the waiting time

and greatly improving efficiency;

●The differential mechanism lock and one-click switchover between double-drive mode and four-drive mode

are specially designed for rugged terrain and harsh natural environments;

●The water chilling system for electric control and motor and the large vent design for rough terrain internal

combustion forklift offer quick heat exchange and better heat dissipation performance;

●The external hydraulic tank integrated with the vehicle frame offers better heat dissipation and ensures the

long reliable operations of the hydraulic parts.

●Low vehicle height and the optional low-height mast meet not only outdoor but also indoor and

underground site operating requirements;

●The design of large passing angle and large distance from the ground, as well as the large-tread tubeless tires,

can perfectly adapt to various bad road conditions;

●The efficient high-torque permanent magnet synchronous motor and the high speed ratio speed reducer offer power

performance and handling performance rival that of rough terrain internal combustion forklifts;

●‘The new front and rear drive design effectively increase the layout space. The vehicle controller controls the front

and rear motor torque to be flexibly distributed according to various special operating conditions.

●The wet brake drive axle and the large swing angle steering drive axle, peers for rough terrain internal

combustion forklifts, have good versatility and guaranteed quality;

●Electrical connectors of the vehicle are designed to be waterproof and main high-voltage electrical

components reach the dust and water resistance level of IP67. The electrical system has high-voltage interlocking;

●Each product of this series is equipped with a CATL, lithium battery and can be equipped with an optional

automatic fire extinguisher for safer use. The suspended shock-absorbing battery pack offers higher reliability of the battery.

Power type		full electric	full electric	full electric
Operation		Seated	Seated	Seated
Capacity	Q(kg)	2500	3000	3500
Loading center	C(mm)	500	500	500
Lift Height	h3 (mm)	3000	3000	3000
Length to face of fork	l2 (mm)	3125	3140	3140
Overall width	b1 (mm)	1599	1599	1599
Travel speed, laden/unladen	km/h	24/26	24/26	24/26
Lifting speed, laden/unladen	m/s	0.62/0.66	0.43/0.51	0.43/0.51
Lowering speed, laden/ unladen	m/s	0.5/0.45	0.5/0.45	0.5/0.45
Gradeability, laden/unladen	%	63	55	52
