3.0-3.5t

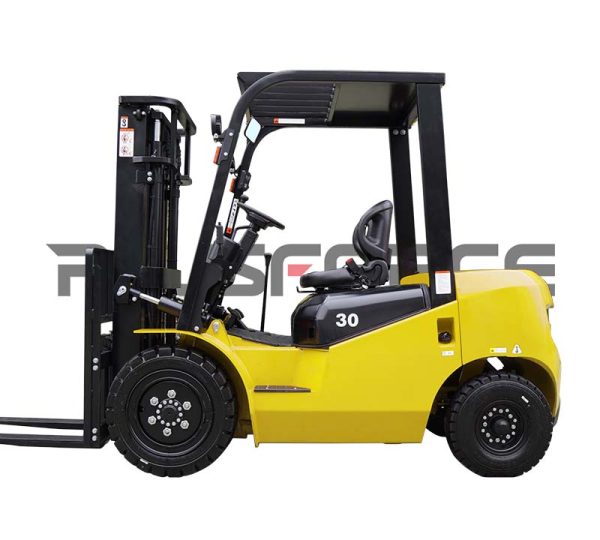

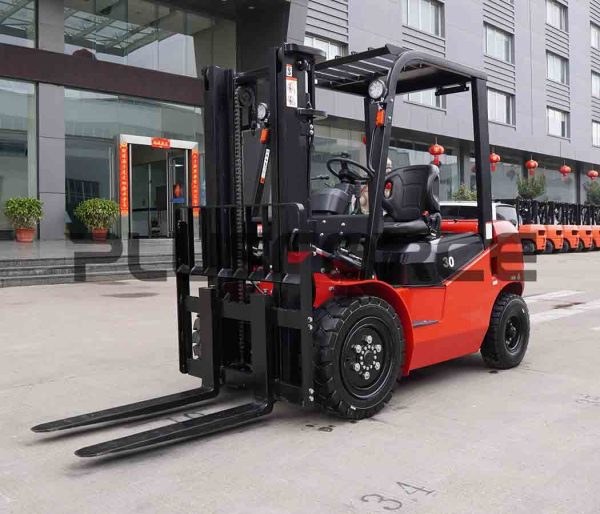

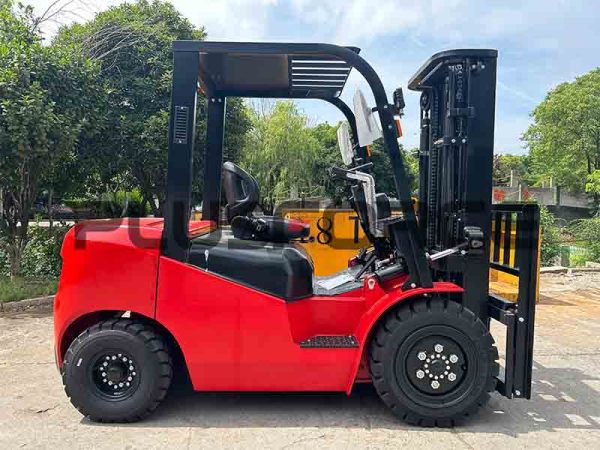

Diesel Forklift

Performance

●High-position dual air intake, scientific design, helps fuel burn fully. Save energy;

●Integral steering axle for more flexible steering;

●High ground clearance, high passability, suitable for different working conditions;

●Top brand engine, transmission, driving axle provide the forklift with great power.

Operation

●Adjustable seat, steering wheel and spacious foot space,meet different operators for more

comfortable operation;

●Small diameter steering wheel with adjustable angle and gentle feel, easy and comfortable to

operate;

●Extended wheelbase design creates a driving space that exceeds its peers through a reasonable

functional layout.

Safety

●Anti-slip wide pedal design, easy to get on and off, more safety;

●The wide-view mast design provides the drivers with an excellent field of vision, making loading and

unloading operations safer and more efficient;

●The seats equipped with seat belts, providing drivers with more comprehensive safety protection;

●LED lights, flashing light are better and safer vision for night operation;

●Enhanced headguard, chassis protect operator and goods from damage.

Maintenance

●The hood can be opened 90° to facilitate maintenance and inspection of components;

●The whole forklift is made of quality material and components, less maintenance is requested;

●Optional mast,side shift, fork positioner and multiple attachments are available.

Specifications

Power type

Diesel

Diesel

Operation

Seated

Seated

Capacity

Kg

3000

3500

Load center

mm

500

500

Lifting height

mm

3000

3000

Overall length

 mm

3820

3860

Length to face of fork

mm

2750

2790

Overall width

mm

1228

1228

Travel speed  (laden/unladen)

Km/h

18/20

18/20

Lifing speed  (laden/unladen)

mm/s

420/520

395/500

Lowering speed  (laden/unladen)

mm/s

≤600/≥300

≤600/≥300

Max.Gradeability  (laden)

%

20

20
