3.0-4.0t

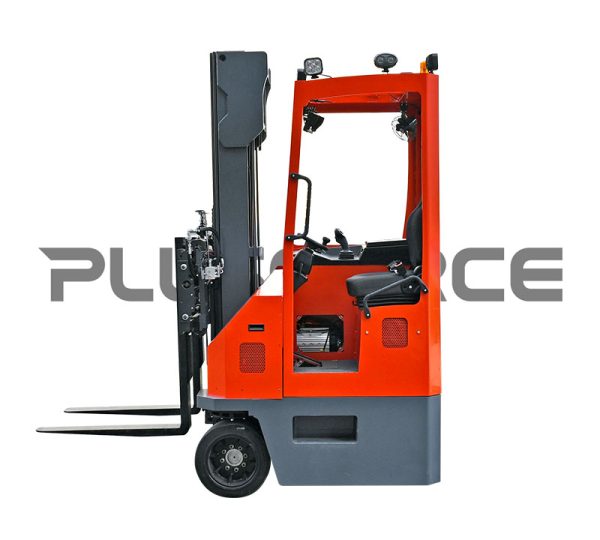

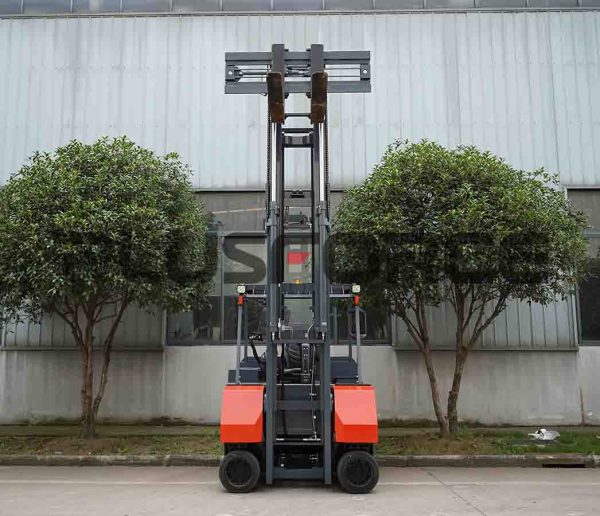

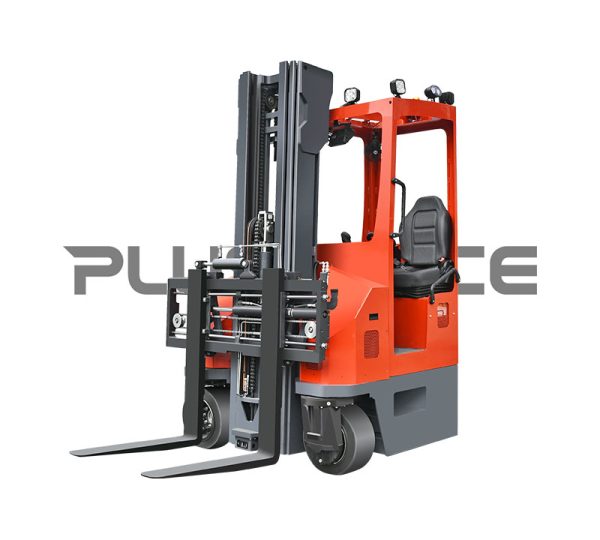

Electric Multi-directional Counterbalance Forklift Truck

Performance

●Dual-drive braking: the braking effect is better, it can be used on slippery and icy ground, and

the operator’s work is safer;

● Ergonomic design: integrated handle and multi-functional intelligent instrument panel, with

wheel display function, more comfortable and convenient operation;

● Non-stop continuous operation mode, high flexibility and high efficiency;

● Equipped with distance adjustment + side shifting forks, it has wide adaptability and high

efficiency in picking and placing goods;

● High endurance: Full AC system design, using AC brushless motor, high efficiency and energy saving,

to meet multiple operating requirements under heavy working conditions;

● High operating comfort: Equipped with electronic steering, which makes steering more labor-saving,

reduces fatigue intensity and improves efficiency;

● LED headlights, warning lights to provide good lighting and warning for night operations;

● The AC motor is maintenance-free. The AC power system is highly efficient and has complete protection functions.

It has its own speed sensor and temperature sensor, and has high reliability and long life;

● Equipped with an active driver presence safety monitoring OPS system, the operation safety is effectively improved.

Specifications

Power Type

Battery

Battery

Operation type

Seated

Seated

Load capacity

Q(kg)

3000

4000

Load center distance

C(mm)

500

600

Lift height

h3(mm)

3600

4500

Overall length

l1(mm)

2520

3073

Length to fork face

l2(mm)

1600

1873

Overall width

b1(mm)

1640

1650

Lifting speed, laden/unladen

mm/s

220/350

250/360

Lowering speed, laden/unladen

mm/s

360/260

280/260

Max straight driving gradeability, laden/unladen

%(tanθ )

10/10

8/10

Max sideways driving gradeability, laden/unladen

%(tanθ )

10/10

8/10
