3.0-4.0t

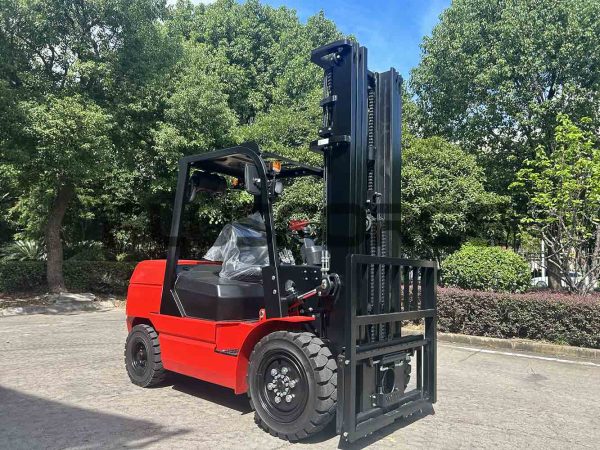

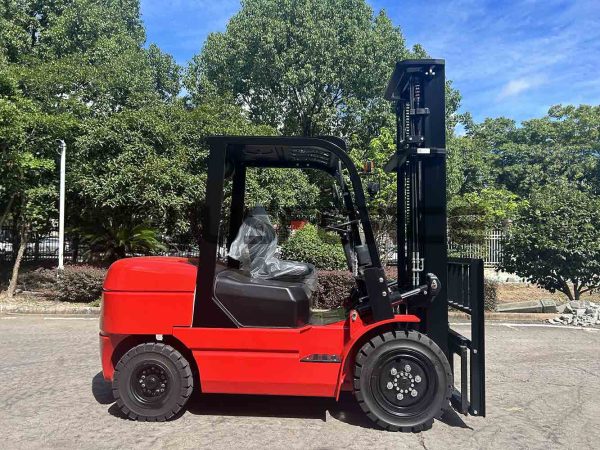

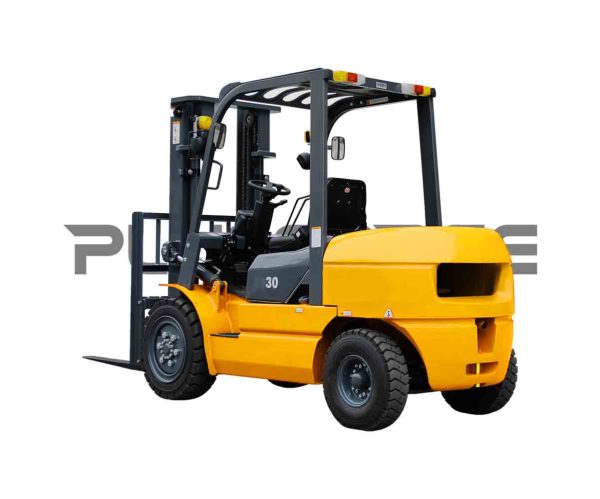

Diesel Forklift

Performance

●The excellent hydraulic system ensure the working safety and increasing the mast lifting speed by 20%;

●Equipped with smart start system, which prevents the vehicle from starting in gear, improves safety and extend

the service life of the gearbox;

Operation

●High-speed gearbox, maximum travel speed increased by 15%;

●Extended wheelbase design creates a driving space that exceeds its peers through a reasonable functional layout;

●The wide-view mast design provides the driver with an excellent field of vision, making loading and unloading

operations safer and more efficient;

●Can add paper clamp, carton clamp, rotator to fit with different working conditions.

Safety

●The lifting cylinder with descending buffer function，more safety;

●The seats equipped with seat belts, providing drivers with more comprehensive safety protection;

●Overhead guard is made of high-strength steel which is very rigid and keep the operator in safe.

Maintenance

●The lifting cylinder, tilting cylinder and steering cylinder are equipped with imported oil seals.

Reliable quality, less maintenance;

●High-strength integrally tilt cylinder support effectively improves the stress condition of the

vehicle body and mast, increasing service life.

Specifications

Power type

Diesel/Gasoline/LPG

Diesel/Gasoline/LPG

Diesel/Gasoline/LPG

Diesel/Gasoline/LPG

Operation

Seated

Seated

Seated

Seated

Capacity

Kg

3000

3500

3800

4000

Load center

mm

500

500

500

500

Lifting height

 H (mm)

3000

3000

3000

3000

Overall length

 mm

3850

3905

3905

3960

Length to face of fork

L (mm)

2780

2835

2835

2890

Overall width

W (mm)

1230

1230

1230

1410

Travel speed  (laden/unladen)

Km/h

19/20

19/20

19/20

18/19

Lifing speed  (laden/unladen)

mm/s

510/550

440/480

430/480

320/480

Lowering speed  (laden/unladen)

mm/s

≤600/≥300

≤600/≥300

≤600/≥300

≤600/≥300

Max.Drawbar pull  (laden)

N

21000

21000

31000

31000

Max.Gradeability  (laden)

%

20

20

20

20
