1.5-3.5t

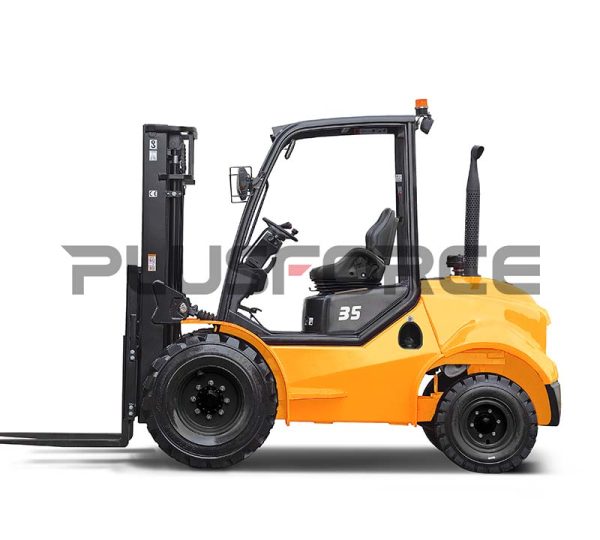

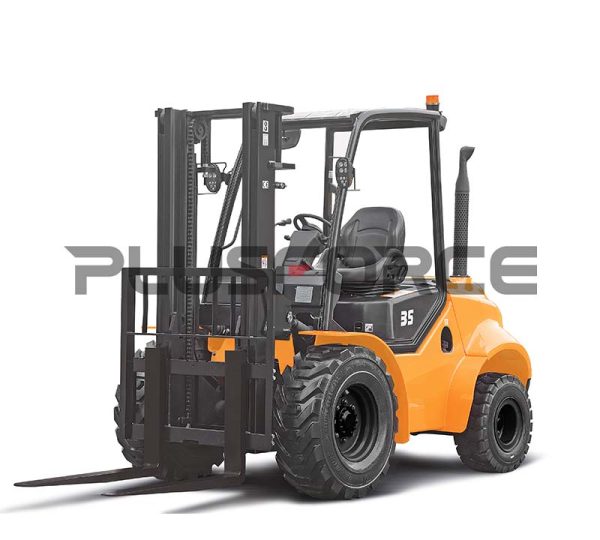

2WD Diesel Rough Terrain Forklift
WARRANTY
SERVICE
DELIVERY
TERMS
SOLUTION
●Capacity：1.5-3.5t
●2WD Diesel Rough Terrain Forklift
●Superior performance, economy and longevity
●Large-size deep-pattern tires
●Easily handles various road surfaces
Performance
●Suspension hydraulic transmission with two forward gears and one reverse, providing higher speed and
greater gradeability; Drive axle is equipped with wide-base and deep tread tires, enhanced brakes,
bearings, differential with automatic locking function, as well as enhanced steering axle assembly providing
ultimate traction during inclement weather conditions and rough operating surfaces；
●Dual air filter\extra capacity combined radiator with serpentine wave and optimized heat dissipation
channel enhance the heat dissipation capability to keep engine reliability even in heavy-duty applications.
Oscillating steer axle allows either wheel to step over obstacles keeping the truck and load level, high ground
clearance offers greater maneuverability and keeps the truck moving in the roughest of applications；
●The new vehicle controller integrates all electrical components, features excellent durability for temperature\water
and vibration, and the oil filter/return oil filter are all work for the most demanding operation;
●Newly-developed LCD instrument has more comprehensive functions and more stable performance and
entirely displays the full truck state, fault code and other important information, which can make the operator
more intuitively and conveniently have a better knowledge of truck state and make the maintenance conveniently.
Specifications
Power type |
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
|
Operation |
Seated |
Seated |
Seated |
Seated |
Seated |
|
Capacity |
Q(kg) |
1500 |
1800 |
2500 |
3000 |
3500 |
Loading center |
C(mm) |
500 |
500 |
500 |
500 |
500 |
Lifting height |
h3 (mm) |
3000 |
3000 |
3000 |
3000 |
3000 |
Overall length |
l1 (mm) |
4120 |
4120 |
4245 |
4260 |
4260 |
Length to face of fork |
l2 (mm) |
3050 |
3050 |
3025 |
3040 |
3040 |
Overall width |
b1 (mm) |
1450 |
1450 |
1557 |
1599 |
1599 |
Travel speed, laden/unladen |
km/h |
23/25 |
23/25 |
24/26 |
26/28 |
26/28 |
Lifting speed, laden/unladen |
m/s |
0.62/0.64 |
0.62/0.64 |
0.62/0.64 |
0.49/0.51 |
0.43/0.51 |
Lowering speed, laden/ unladen |
m/s |
0.5/0.45 |
0.5/0.45 |
0.5/0.45 |
0.5/0.45 |
0.5/0.45 |
Drawbar pull, laden |
N |
31000 |
33000 |
23000 |
24000 |
26000 |
Gradeability, laden |
% |
60 |
60 |
32 |
30 |
29 |
