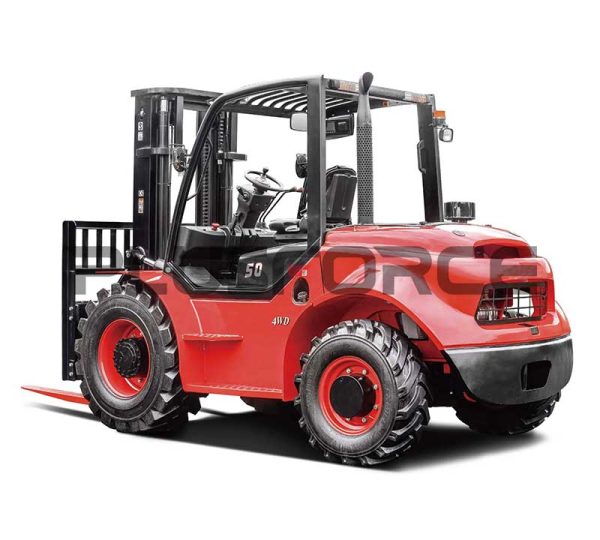

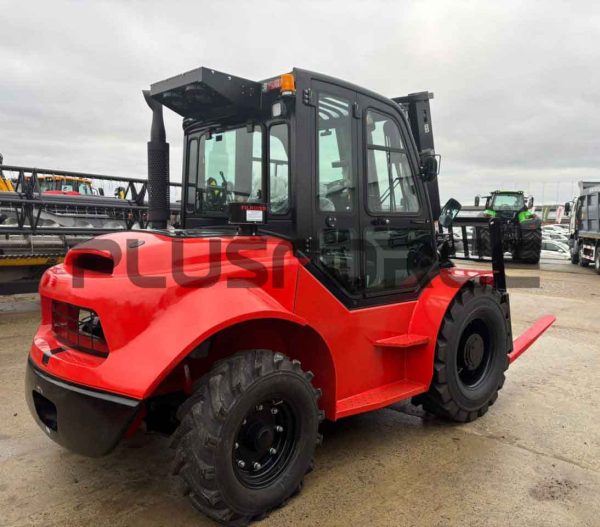

5.0-7.0t2WD Diesel Rough Terrain Forklift

●The differential is specifically designed for rough terrain and features manual differential

lock providing ultimate traction during inclement weather conditions and rough operating

surfaces, it differerntial lock prevents power loose when one wheel spins;

●The transmission system gets the maximum performance from the engine without reaching

high revolutions, which provides fuel saving, noise level reduction and engine life increase;

●The new Dynamic load sensing hydraulic steering system contributes to reduce loss of hydraulic

and improve energy efficiency;

●The new efficiency lighting system employs LED illuminant and new type reflector to reduce energy

consumption, improve significantly illumination performance and prolong work time;

●Wet brake offers maximum service life for your brake system.

●Thanks to the steering oil circuit and the brake oil circuit are independent of each other,

thereby reducing the interference of the brake on the steering, the hydraulic braking system is

very safe;

●With the structure of brake valve plus the accumulator, it is safer and reliable;

●The returned oil filtration device is taken as the standard configuration to extend the service

life of the hydraulic elements;

●OPS function is available for option, work is safer and reliable.

●With the suspension and integrated overhead guard, full-floating transmission, complex engine

shock absorber and suspension seat, driving is more comfortable, and the vibration and

noise of the truck can be reduced;

●The extra foot space is provided to reduce operator fatigue significantly, non-slip step makes

getting in and out easy and safe. The new designed steering wheel、new brake system

and the easy-to-operate levers provide total handling operation;

●Excellent upward visibility is provided by a large roof screen, in fact, visibility all-round is excellent.

●The two-piece design makes the floorboard easy to lift and remove for access to the power train;

●The radiator cover can be turned easily by hand to enable quick inspections or servicing.

Specifications

Power type		Diesel	Diesel
Operation		Seated	Seated
Capacity	Q(kg)	5000	7000
Loading center	C(mm)	600	600
Lifting height	h3 (mm)	3000	3000
Overall length	l1 (mm)	4865	5360
Length to face of fork	l2 (mm)	3665	4140
Overall width	b1 (mm)	2105	2145
Travel speed, laden/unladen	km/h	25/25	25/25
Lifting speed, laden/unladen	m/s	0.45/0.52	0.41/0.43
Lowering speed, laden/ unladen	m/s	0.5/0.43	0.46/0.39
Drawbar pull, laden	N	77000	80000
Gradeability, laden	%	39	52
