1.5-3.5t

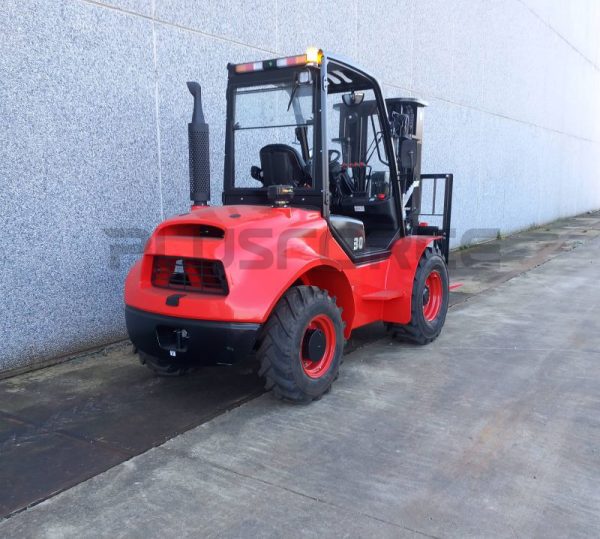

4-Wheel Drive Diesel Rough Terrain Forklift
WARRANTY
SERVICE
DELIVERY
TERMS
SOLUTION
●Capacity：1.5~3.5t
●4WD Diesel rough terrain forklifts
●Superior performance
●High ground clearance, high passability
●Large tires with deep treads
Performance
●Dual air filter、extra capacity combined radiator with serpentine wave andoptimized heat dissipation channel enhance
the heat dissipation capability to keep engine reliability even in heavy-duty applications；
●The differential is specifically designed for rough terrain and features manual differential lock providing ultimate traction during
inclement weather conditions and rough operating surfaces, it differerntial lock prevents power loose when one wheel spins；
●In addition to rubber damper between overhead and frames, compound engine damper and full floating power train achieve
flexible connection between frames and driving system, as a result,traveling vibrations and vibrations from the driving system
are significantly reduced.
Operation
●The extra foot space is provided to reduce operator fatigue significantly, non-slip step makes getting in
and out easy and safe.The new designed steering wheel、 new brake system and the easy-to-operate levers
provide total handling operation；
●Newly-developed LCD instrument has more comprehensive functions and more stable performance and entirely
displays the full truck state, fault code and other important information, which can make the operator more intuitively
and conveniently have abetter knowledge of truck state and make the maintenance conveniently.
Specifications
Power type |
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
|
Operation |
Seated |
Seated |
Seated |
Seated |
Seated |
|
Capacity |
Q(kg) |
1500 |
1800 |
2500 |
3000 |
3500 |
Loading center |
C(mm) |
500 |
500 |
500 |
500 |
500 |
Lifting height |
h3 (mm) |
3000 |
3000 |
3000 |
3000 |
3000 |
Overall length |
l1 (mm) |
4120 |
4120 |
4305 |
4320 |
4320 |
Length to face of fork |
l2 (mm) |
3050 |
3050 |
3085 |
3100 |
3100 |
Overall width |
b1 (mm) |
1450 |
1450 |
1557 |
1599 |
1599 |
Travel speed, laden/unladen |
km/h |
23/25 |
23/25 |
24/26 |
24/26 |
24/26 |
Lifting speed, laden/unladen |
m/s |
0.62/0.64 |
0.62/0.64 |
0.62/0.64 |
0.49/0.51 |
0.43/0.51 |
Lowering speed, laden/ unladen |
m/s |
0.5/0.45 |
0.5/0.45 |
0.5/0.45 |
0.5/0.45 |
0.5/0.45 |
Drawbar pull, laden |
N |
31000 |
33000 |
40000 |
45000 |
45000 |
Gradeability, laden |
% |
60 |
60 |
58 |
55 |
52 |
