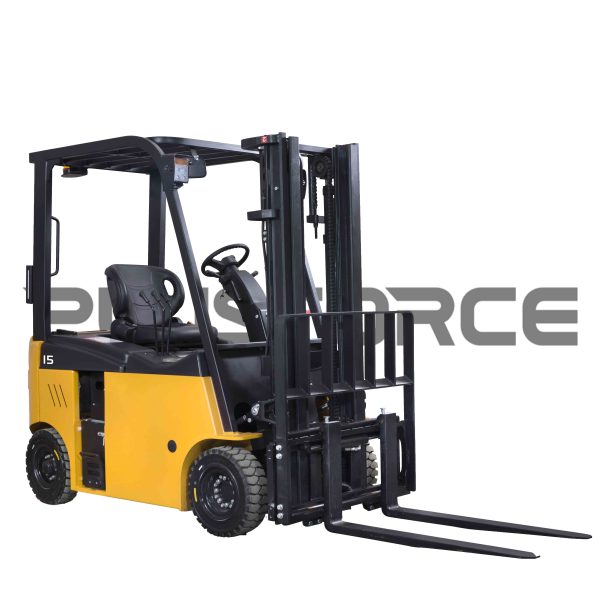

CPD15-35L1(S)

Performance

●IPX waterproof, can be used indoors and outdoors, suitable for a variety of working conditions;

●CJ material mast,ultra-wide operating field of view, making forklift more convenient and efficient.

Operation

●Multifunctional integrated operation, convenient and fast operation;

●Optimize the weight distribution of the vehicle body: make full use of the characteristics of lithium battery

with large energy and small size,more flexible.

Safety

●Reinforced headguard, strong and durable, keep the safety of operators;

●Ultra-low and ultra-large pedal: make it easier for operators to get on and off,more safety;

●Smart control system is the basis of safe working.

Maintenance

●Intelligent instrument, can display working time, power, driving speed and fault codes for easy

maintenance;

●The battery can be disassembled by pulling it from the side, which is convenient for maintenance or

change spare battery.(CPD15L1/CPD20L1).

Specifications

Model

CPD15L1

CPD20L1

CPD20L1S

CPD30L1S

CPD35L1S

Power type

full electric

full electric

full electric

full electric

full electric

Operation

Steated

Steated

Steated

Steated

Steated

Capacity

Q(kg)

1500

2000

2000

3000

3500

Loading center

C(mm)

500

500

500

500

500

Lifting height

h3 (mm)

3000

3000

3000

3000

3000

Height of overhead guard

h6 (mm)

2080

2080

2080

2210

2210

Overall length

l1 (mm)

3270

3270

3315

3640

3660

Length to face of fork

l2 (mm)

2200

2200

2245

2570

2590

Overall width

b1/b2 (mm)

1080

1080

1130

1298

1356

Travel speed, laden/unladen

km/h

10.5/14

10.5/14

15/16

15/16

15/16

Lifting speed, laden/unladen

m/s

0.3/ 0.42

0.28/ 0.42

0.33/0.48

0.4/0.45

0.4/0.45

Lowering speed, laden/ unladen

m/s

0.42/ 0.45

0.43/ 0.45

0.42/ 0.45

0.44/ 0.48

0.44/ 0.48

Gradeability, laden/unladen

%

10.5/14

10.5/14

16/20

16/20

16/20
