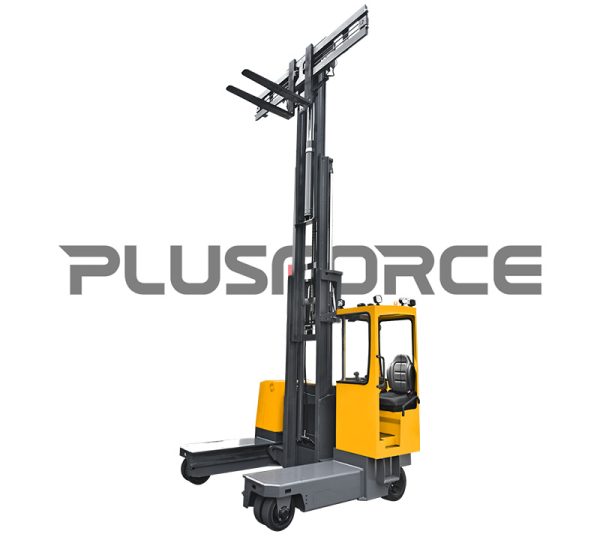

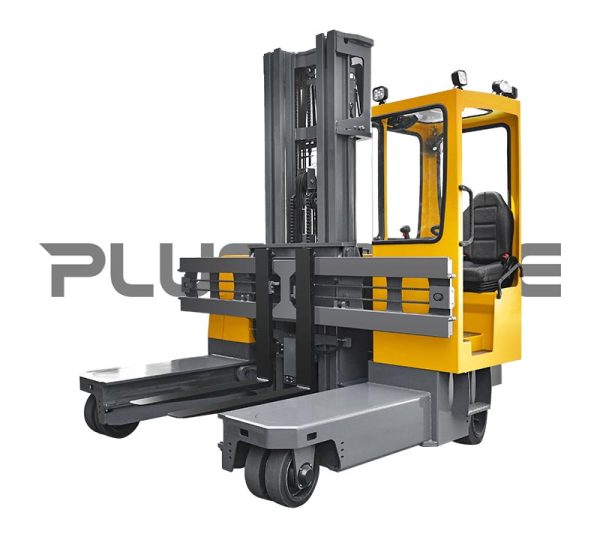

2.5-5.0t Rough Multi-Directional Forklift

Performance

●Dual AC drive motors,strong power,higher gradeability and faster driving speed. Dual drive braking with

electromagnetic brakes ensure excellent braking performance.Able to be used on slippery and icy ground, safer operation;

●Wide machine structure enable a great stability to carry long and heavy materials.

●EPS steering system has lower energy consumption andhigher control precision, more labor-saving and easy to operate;

●Imported controller with stable performance and low failure rate ensures reliable operation;

●Equipped with speed sensor and temperature sensor to monitor the vehicle, Ensure the safety and extend its service life;

●Unique driving mode present its excellent capability on long material handling and maximize warehouse utilization;

●Optional maintenance-free lithium battery to meet different working conditions;

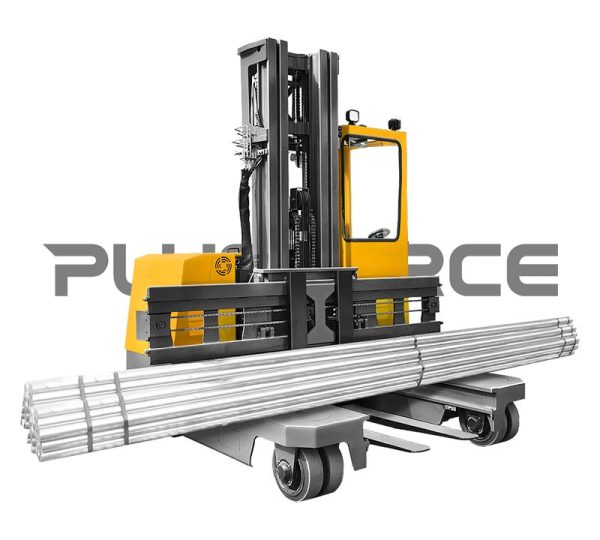

●Optional forks of various specifications, four-fork attachments, extra-wide fork carriage, etc., to adapt

different lengths of materials.

●The mast can be moved forward or retracted as a whole, equipped with widened fork positioner, precise operation and

improves work efficiency;

●Ergonomic design: integrated handle, spacious driving space,adjustable steering wheel and seat,make operation more

comfortable and convenient;

●High chassis design, high passability, can choose rubber tire to be used indoors and outdoors;

●Multi-function displays,show the vehicle status, including driving wheel status and parking status, etc. to achieve precise

control and safer operation;

●Wider field of vision, the driver has a good view, which is convenient and safer to operate, also improving work efficiency;

●4-wheel independent steering control,multiple driving modes.Straight,sideways, diagonal and in-situ rotation etc.,

flexible operation.

●Reinforced structure and high-precision mast，maintain excellent load capacity at high level loading condition；

●OPS suspension seat, the operator can drive only when sitting in the seat, avoiding the danger caused by

misoperation；

●High-definition cameras and rearview mirrors,provide excellent visibility, and warning lights remind people

around to ensure safety；

●Emergency power off switch, when the operation is out of control, all power can be easily cut off to avoid

emergency accidents；

●Equipped with explosion-proof valve, it will not drop suddenly even there is a default on the hydraulic circuit.

●Adopt mature components,less maintenance required；

●Most electrical components are centralized distribution, making maintenance more convenient;

●Maintenance-free AC motor and optional maintenance-free lithium battery,extend the service life and reduce

maintenance costs；

●LCD display with hour meter and power display, reminding you to charge in time, and we can monitor truck status reality.

It makes operation more convenient and allows the driver to better realize the machine condition.

Power type		full electric	full electric	full electric	full electric	full electric	full electric
Operation		Seated	Seated	Seated	Seated	Seated	Seated
Capacity	Q(kg)	2500	3000	3500	4000	4500	5000
Loading center	C(mm)	600	600	600	600	600	600
Lifting height	h3 (mm)	4500	4500	4500	4500	4500	4500
Overall length	l1 (mm)	2300	2300	2300	2300	2300	2300
Length to face of forks	l2 (mm)	1230	1230	1100	1100	1100	1100
Overall width	b1/b2(mm)	1850/2160	1850/2160	2183/2435	2183/2435	2440/2710	2440/2710
Lifting speed, laden/unladen	m/s	0.2/0.3	0.2/0.3	0.15/0.25	0.15/0.25	0.21/0.33	0.21/0.33
Lowering speed, laden/ unladen	m/s	0.3/0.22	0.3/0.22	0.2/0.16	0.2/0.16	0.31/0.23	0.31/0.23
Max.Gradeability, laden/unladen	%	8/10	8/10	8/8	8/8	8/10	8/10
