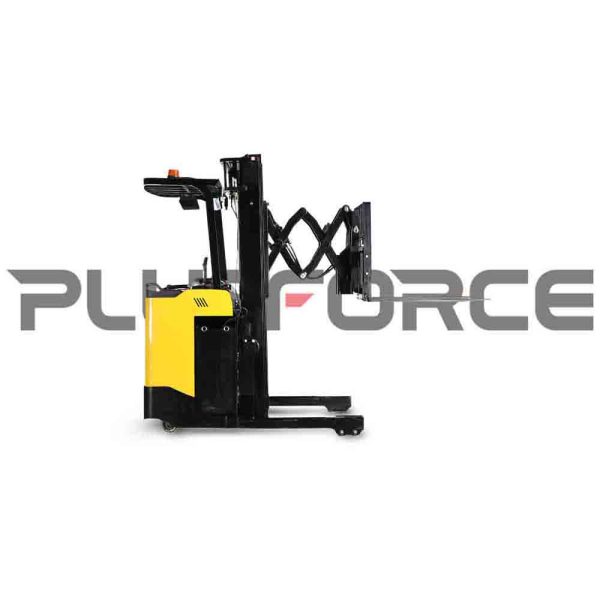

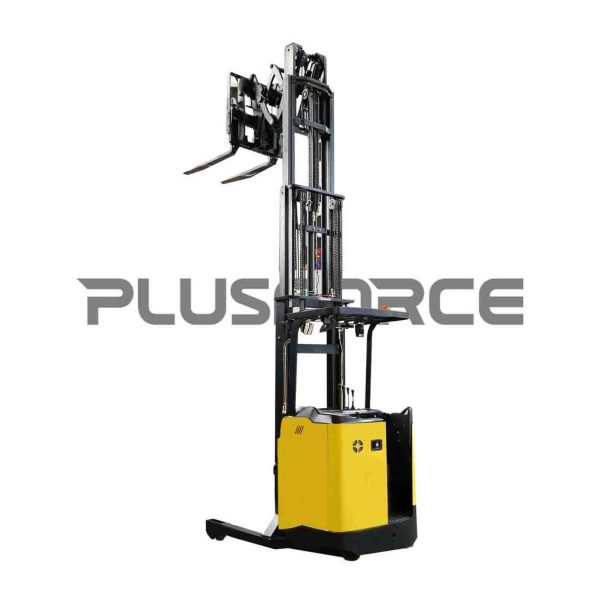

CQD12SSD

Performance

●The explosion-proof design of the hydraulic system，ensure even if the oil pipe bursts, the

mast will not drop quickly；

●Automatic deceleration function on curves；

●Three-point support, big driving wheel and high strength load wheel，ensure the stability；

●The oil pump, oil cylinder and pipelines that have undergone multiple test，high reliability

of the hydraulic system.

Operation

●Compact size and solenoid valve control make operate flexibly in narrow spaces；

●Control panel fully considers ergonomics, and each function button is easy to operate；

●The big driving space and the back equipped with sponge pad to make more comfortable.

Safety

●Emergency power-off switch can easily cut off all power supplies to avoid emergencies;

●Multiple lifting limits make stacking more safety；

●Anti-skid braking function prevents the vehicle from sliding down when it is out of control or driving on slope.

Maintenance

●AC motor and lithium battery, maintenance-free；

●Instrument can display fault codes, easy for maintenance；

●Controller self-diagnosis system, improves maintenance efficiency；

●Automatic low voltage protection extends battery life.

Specifications

Model

CQD12SSD

Power type

full electric

Operation

Standing

Capacity

Q(kg)

1200

Loading center

C(mm)

600

Lifting height

h3 (mm)

3000②

Height of overhead guard

h6 (mm)

2250

Overall length

l1 (mm)

2535③

Length to face of fork

l2 (mm)

1470

Overall width

b1/b2 (mm)

1078/1278

Travel speed, laden/unladen

km/h

8.5/9

Lifting speed, laden/unladen

m/s

0.26/0.39

Lowering speed, laden/ unladen

m/s

0.47/0.47

Reaching speed, laden /unladen

m/s

0.18/0.21

Gradeability, laden/unladen

%

8/10
