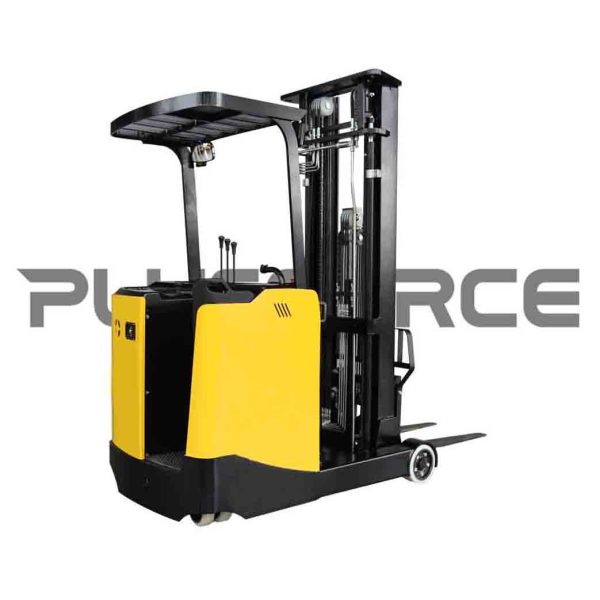

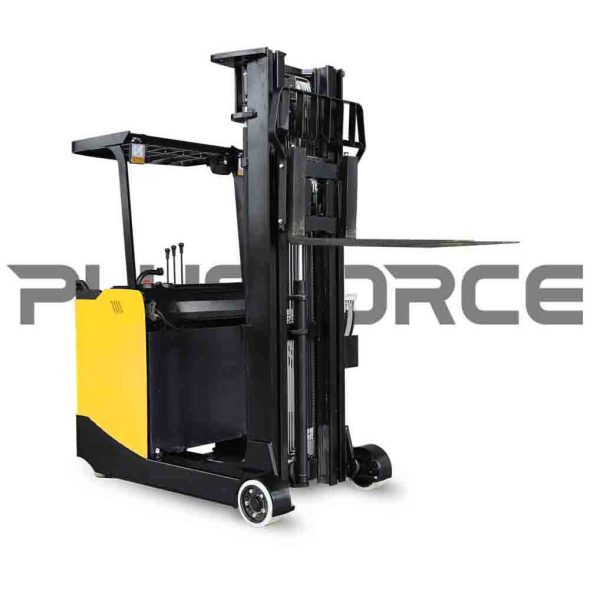

CQD15S

Performance

●Efficient heat dissipation system,supports long-term continuous operation；

●Super high-strength load wheel, suitable for various uneven road conditions, ensure

vehicle stability；

●Oil pumps, cylinders and pipelines that have undergone multiple tests,ensuring high reliability

of the hydraulic system.

Operation

●Electric steering control enable easier operation；

●The control panel fully considers ergonomics, and each function button is easy to operate；

●The battery is easy to pull out and replace, ensuring continuous operation.

Safety

●Explosion-proof hydraulic system,even if the oil pipe bursts, the mast will not drop quickly；

●Automatic deceleration function on curves, safer driving；

●Emergency power-off switch can easily cut off all power supplies to avoid accidents；

●Anti-skid braking function prevents the vehicle sliding down when it is out of control or driving on a slope.

Maintenance

●AMP waterproof connectors and components, greatly reducing electrical failures;

●Instrument that can display fault codes greatly facilitates maintenance;

●The controller self-diagnosis system；

●Low voltage automatic protection prolongs the battery life.

Specifications

Model

CQD15S

Power type

full electric

Operation

Standing

Capacity

Q(kg)

1500

Loading center

C(mm)

600

Lifting height

h3 (mm)

3000②

Height of overhead guard

h6 (mm)

2255

Overall length

l1 (mm)

2335③

Length to face of fork

l2 (mm)

1265③

Overall width

b1/b2 (mm)

1078/1090

Travel speed, laden/unladen

km/h

8.5/9

Lifting speed, laden/unladen

m/s

0.28/0.44

Lowering speed, laden/ unladen

m/s

0.52/0.48

Reaching speed, laden /unladen

m/s

0.1/0.1

Gradeability, laden/unladen

%

8/10
