CQD15SS
WARRANTY
SERVICE
DELIVERY
TERMS
SOLUTION

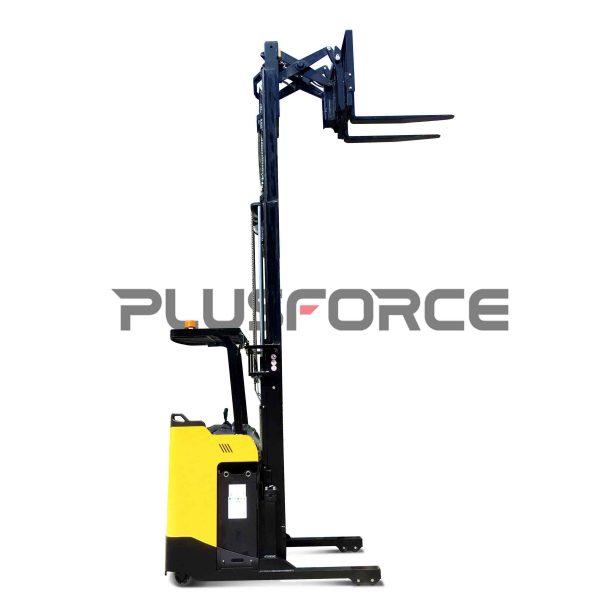

●Capacity：1.5t ●Electric Standing Reach Truck ●Suitable for picking and stacking goods in deep shelves
Performance
●Oil pumps, cylinders and pipelines that have undergone multiple tests , ensuring high
reliability of the hydraulic system；
●Super high-strength load wheel, suitable for various uneven road conditions, ensure
vehicle stability；
●Strong AC drive,high-performance and more powerful,and also maintenance free.
Operation
●Control panel fully considers ergonomics, and each function button easy to operate；
●The battery is easy to pull out and replace, ensuring continuous operation.
Safety
●Explosion-proof hydraulic system, even if the oil pipe bursts, the mast will not drop quickly；
●Automatic deceleration function on curves,more safety；
●Emergency power-off switch can easily cut off all power supplies to avoid accidents;
●Anti-skid braking function prevents the vehicle sliding down when it is out of control
or driving on a slope.
Maintenance
●To open a cover, we can see most electric components, easier for maintenance;
●Controller self-diagnosis system;
●Automatic low voltage protection extends battery life；
●Instrument display fault codes greatly facilitates maintenance.
Specifications
Model |
CQD15SS |
|
Power type |
full electric |
|
Operation |
Standing |
|
Capacity |
Q(kg) |
1500 |
Loading center |
C(mm) |
600 |
Lifting height |
h3 (mm) |
3000② |
Height of overhead guard |
h6 (mm) |
2245 |
Overall length |
l1 (mm) |
2415③ |
Length to face of fork |
l2 (mm) |
1345 |
Overall width |
b1/b2 (mm) |
1078 |
Travel speed, laden/unladen |
km/h |
8.5/9 |
Lifting speed, laden/unladen |
m/s |
0.26/0.39 |
Lowering speed, laden/ unladen |
m/s |
0.47/0.47 |
Reaching speed, laden /unladen |
m/s |
0.18/0.18 |
Gradeability, laden/unladen |
% |
8/10 |
