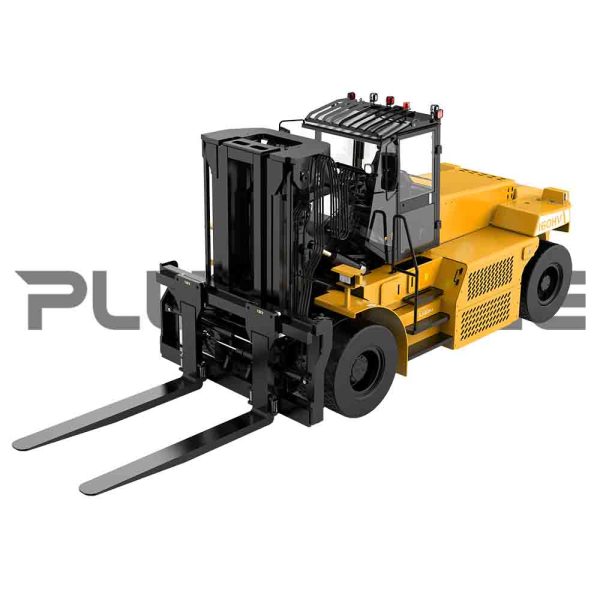

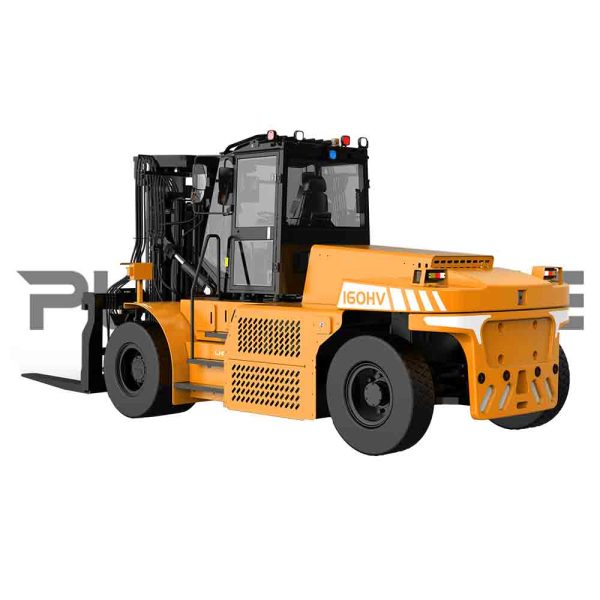

EFL1603/1803-HV-9/12 EFL2503-HV-12
WARRANTY
SERVICE
DELIVERY
TERMS
SOLUTION
●Capacity：16/18/25/10t
●Heavy Duty Electric Forklift
●Modern appearance
●Strong power and climbing ability
●Super load capacity
●Various options
Performance
●High configuration, equipped with cabin, Rubber shock absorption,heater,air condition,defrost
and defogging functions,and electric hydraulic tilt function；
●Battery heating function during charging, continuous and stable charging in cold weather,
ensure work efficiency
Operation
●Fork positioner with side shift for easy and precise operation；
●Multifunctional joystick for hydraulic control, flexible and comfortable operation；
●Suspension seat with armrests, heating and OPS；
●Warning lights, steering lights and LED lights are fully equipped to ensure safe operation.
Safety
●Reverse buzzer reminds people around to reducing accidents and more safety；
●Mast lifting and lowering buffer for safe and stable transportation；
●Equipped with 3-stage pedals and handrails to facilitate getting on and off, ensure the safety of
operators.
Maintenance
●LCD display, display power, working hours, and faults, etc., for easy maintenance；
●Lithium battery, maintenance-free；
●With reliable components, ensure the forklift has a long service life.
Specifications
Model |
EFL1603-HV-9 |
EFL1603-HV-12 |
EFL1803-HV-9 |
EFL1803-HV-12 |
EFL2503-HV-12 |
|
Power type |
full electric |
full electric |
full electric |
full electric |
full electric |
|
Operation |
Seated |
Seated |
Seated |
Seated |
Seated |
|
Capacity |
Q(kg) |
16000 |
16000 |
18000 |
18000 |
25000 |
Loading center |
C(mm) |
900 |
1200 |
900 |
1200 |
1200 |
Lifting height |
h3 (mm) |
4000 |
4000 |
4000 |
4000 |
4000 |
Height of overhead guard |
h6 (mm) |
3160 |
3160 |
3220 |
3220 |
3380 |
Seat height/standing height |
h7 (mm) |
2000 |
2000 |
2050 |
2050 |
2465 |
Tow coupling height |
h10 (mm) |
430 |
430 |
430 |
430 |
390 |
Overall length |
l1 (mm) |
7015 |
7950 |
7370 |
7950 |
8860 |
Length to face of fork |
l2 (mm) |
5195 |
5550 |
5550 |
5550 |
6420 |
Overall width |
b1/b2 (mm) |
2570/2475 |
2570/2500 |
2570/2500 |
2570/2500 |
3080/3000 |
Travel speed, laden/unladen |
km/h |
20/20 |
20/20 |
20/20 |
20/28 |
22/22 |
Lifting speed, laden/unladen |
m/s |
0.35/0.4 |
0.4/0.45 |
0.35/0.4 |
0.4/0.45 |
0.3/0.35 |
Lowering speed, laden/ unladen |
m/s |
0.5/0.35 |
0.5/0.4 |
0.5/0.35 |
0.5/0.4 |
0.48/0.4 |
Max.Drawbar pull (laden) |
N |
95000/95000 |
95000/95000 |
95000/95000 |
95000/95000 |
160000/160000 |
Gradeability, laden/unladen |
% |
20/30 |
20/30 |
20/30 |
20/30 |
20/30 |
