EFL503/553-HVD-6 EFL603/703-HV-6

Performance

●The performance of high-voltage models is almost 2times higher than low-voltage models,

faster driving speed, faster lifting speed,stronger gradeability;

●The combination of PMSM and high-voltage lithium battery present a extremely performance

also on the duration. And ensure the forklift meet various working conditions, such as dusty condition,

cold condition, hot condition etc;

●High-voltage lithium batteries have the advantage of storing more power and consuming less energy,

providing longer battery runtime.Less energy cost, one charging for daily working;

●The overall IPX4 rating, which can continuous work even in rainy days. Also, high-voltage components

reaches IP67 rating, it can withstand harsh temperatures. The ambient temperature range of

large-capacity forklifts is -20°C~40°C, it can works well in all weather conditions.

Operation

●Ergonomic design, spacious operating space, excellent vision. All function buttons are centrally

distributed, easy to operate. The steering wheel and seat are adjustable to reduce driving fatigue;

●The dual front wheels provide greater support, greatly improving the stability of the forklift. The

dual wheels increase the ground contact area and enhance traction, which is especially beneficial in

outdoor operations where the ground may be slippery or uneven, ensuring that the forklift can

maintain a firm grip and operate safely;

●Hydraulic steering, flexible and convenient operation;

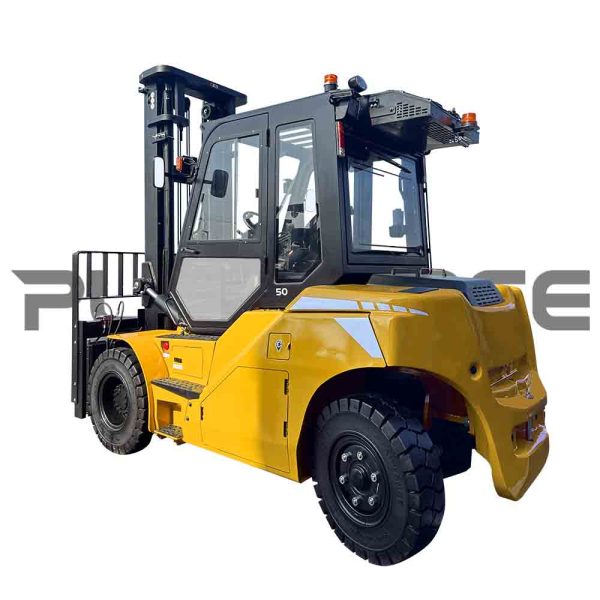

●Optional Cabin, Fingertips and various attachments to meet different needs.

Safety

●Multiple protections are adopted to ensure safe operation, including overcharge protection,

over-temperature protection,short-circuit protection, etc., to minimize potential dangers and

improve safety;

●Turning speed control, which adjusts the speed according to the turning angle, ensures stability

when turning. If the forklift exceeds the safe speed limit, the overspeed alarm reminds the operator;

●Equipped with hydraulic buffer function, it ensures smooth lifting and lowering,the mast will not

stop suddenly, thereby not damaging the cargo or causing discomfort to the operator.

Maintenance

●High-voltage lithium batteries have a longer service life,advanced BMS system helps regulate and monitor

the battery, reducing the need to replace batteries;

●Reliable cooling system to ensure the vehicle remains in optimal status,protect the motor and battery;

●The dual front wheels reduce the pressure on a single tire and extend the service life of the tire;

●LCD display with hour meter and power display, remind to charge in time，and can monitor the whole

vehicle status;

●Most electrical components are centralized distribution, making maintenance more convenient.

Specifications

Model

EFL503-HVD-6

EFL553-HVD-6

EFL603-HV-6

EFL703-HV-6

Power type

full electric

full electric

full electric

full electric

Operation

Seated

Seated

Seated

Seated

Capacity

Q(kg)

5000

5500

6000

7000

Loading center

C(mm)

600

600

600

600

Lifting height

h3 (mm)

3000

3000

3000

3000

Height of overhead guard

h6 (mm)

2590

2590

2590

2590

Seat height/standing height

h7 (mm)

1490

1490

1490

1490

Tow coupling height

h10 (mm)

600

600

600

600

Overall length

l1 (mm)

4720

4720

4720

4775

Length to face of fork

l2 (mm)

3500

3500

3500

3555

Overall width

b1/b2 (mm)

2028

2028

2028

2028

Travel speed, laden/unladen

km/h

25/26

25/26

25/26

25/26

Lifting speed, laden/unladen

m/s

0.51/0.53

0.51/0.53

0.51/0.53

0.51/0.53

Lowering speed, laden/ unladen

m/s

0.48/0.42

0.48/0.42

0.48/0.42

0.48/0.42

Gradeability, laden/unladen

%

30/34

30/34

30/34

30/34
