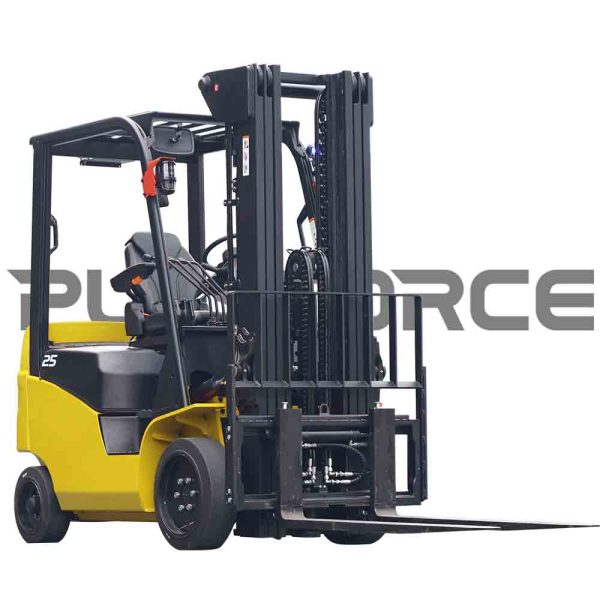

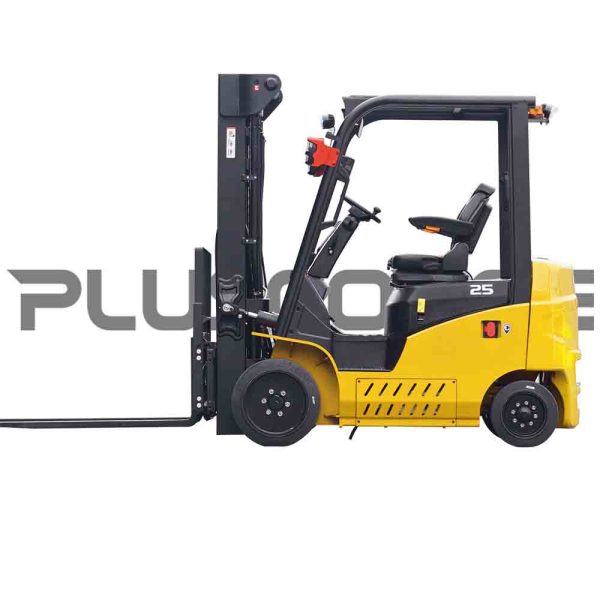

EFLA251B

Performance

●Hydraulic steering, more labor-saving and flexible；

●Powerful AC motor,high travelling and lifting speed；

●External plug, easy to charge without opening the cover；

●Optional mast buffer, automatically slows down the lifting speed as the height increases.

Operation

●Anti slip foot pads for safety operation；

●Optimized visibility through improved cylinder layout,provide a wide field of vision, convenient

operation and improved work efficiency；

●Equipped with suspension seats for comfortable operation and reduced operational fatigue.

Safety

●Equipped with automatic deceleration function when turning, ensuring safe operation；

●Equipped with emergency power-off button to protect operators and goods in emergency

situations；

●Optional OPS system,automatically locked when leaving the seat, more safety

Maintenance

●Good heat dissipation system provides protection for the motor,extend service life；

●Simplified design,convenient for maintenance and replacement of parts；

●AC motor and lithium battery, maintenance-free.

Specifications

Model

EFLA251B

Power type

full electric

Operation

Seated

Capacity

Q(kg)

2500

Loading center

C(mm)

500

Lifting height

h3 (mm)

4800

Height, mast extended

h4 (mm)

5838

Height of overhead guard

h6 (mm)

2105

Seat height/standing height

h7 (mm)

1105

Tow coupling height

h10 (mm)

280

Overall length

l1 (mm)

3399

Length to face of fork

l2 (mm)

2329

Overall width

b1/b2 (mm)

1065

Travel speed, laden/unladen

km/h

13/14

Lifting speed, laden/unladen

m/s

0.61/0.64

Lowering speed, laden/ unladen

m/s

0.5/0.5

Gradeability, laden/unladen

%

15/16
