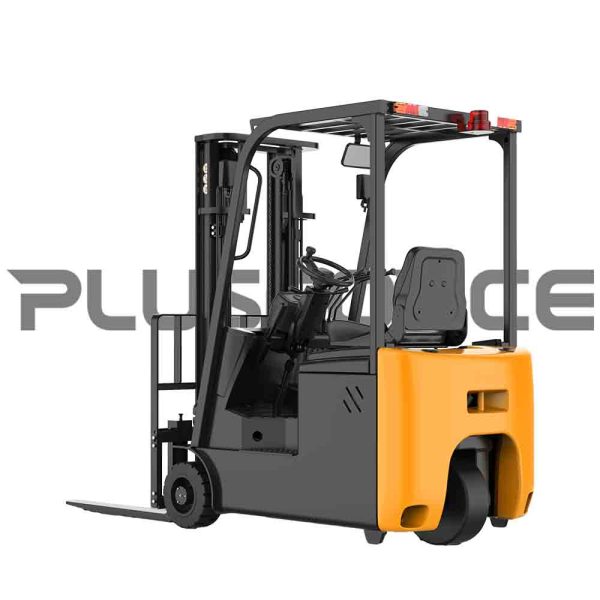

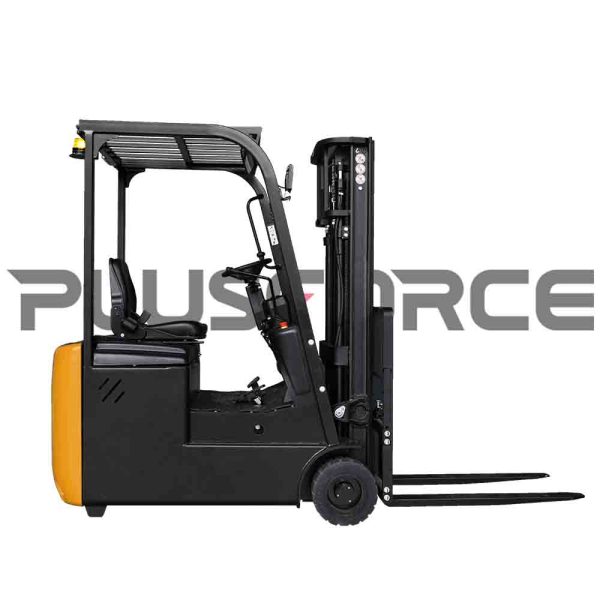

EFS151

Performance

●Equipped with powerful AC motor;

●48V lithium battery(optional) and integrated charger,high efficiency;

●Hydraulic power steering, more stable steering.

Operation

●The compact design, especially at height (<2m), makes it an ideal tool for spaces with low ceilings such

as shopping malls, old factories, underground car parks, freight lifts and old warehouses. It also has a small

turning radius (1535mm) and a light weight (2200kg), which allows for excellent maneuverability

in narrow aisles and mezzanines.

Safety

●High-strength mast makes cargo loading more stable, ensuring the safety of operators and cargo;

●Front wheel brakes for better braking performance.

Maintenance

●Adopt reliable components that have been tested in the market to ensure its long service life;

●Equip with high capacity industrial battery.

Specifications

Model

EFS151(Lead acid)

Power type

full electric

Operation

Steated

Capacity

Q(kg)

1500

Loading center

C(mm)

500

Lifting height

h3 (mm)

3000

Height of overhead guard

h6 (mm)

1995

Seat height/standing height

h7 (mm)

985

Tow coupling height

h10 (mm)

660

Overall length

l1 (mm)

2717

Length to face of fork

l2 (mm)

1797

Overall width

b1/b2 (mm)

1060

Travel speed, laden/unladen

km/h

8/9

Lifting speed, laden/unladen

m/s

0.25/0.3

Lowering speed, laden/ unladen

m/s

0.44/0.425

Gradeability, laden/unladen

%

10/12
